Mosaic Robot


Mosaic Robot series are developed by
A typical mosaic projects for floor, plaza and pool may have more than 100,000 tiles.
I’ve done one with 1,200,000 tiles. It is extremely time consuming to assemble mosaic tiles.
It is really difficult to deal with small size tiles, such as 8x8mm, 10x10mm, 15x15mm, or similar size.
A skilled labor can finish no more than 10,000 mini tiles per day. That is why we started research and develop the automatic mosaic mounting system.

System Componets

Robotic mosaic assembly line has two major componets.
A: Mosaic Pick and Mount Robot.
There are Pallet Area and Feeder Area of all mosaic robots.

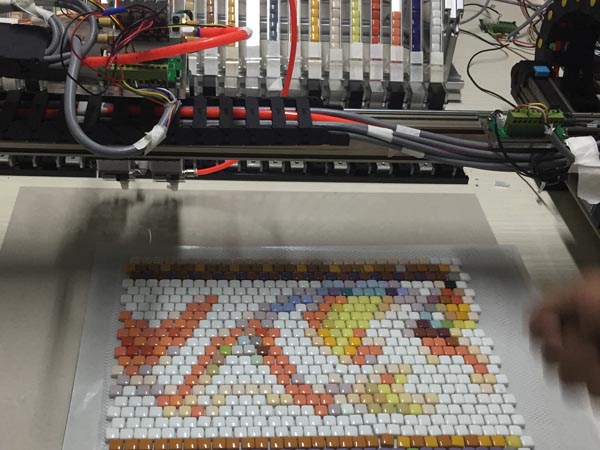

The robot will pick tiles from feeders, take them to Mosaic Pallet and place tiles to proper destinations.
Our Mosaic Robot Cartesian is a quick, percise, economic and durable solution for owner of mosaic business.
Our Robots are optimized to pick multiple small tiles. it is more efficiency than any other industry robots.
The fastest model can assemble 6000 tiles per hour. and we are working to speed up more.

B: Tile feeding system.
Feeders are designed to supply tiles to mosaic robot.
Typically, a feeder will transfer a queue of tiles to a fixed position (Receiver). Mosaic robot will pick up tiles there.
There are several types of feeders can do it.

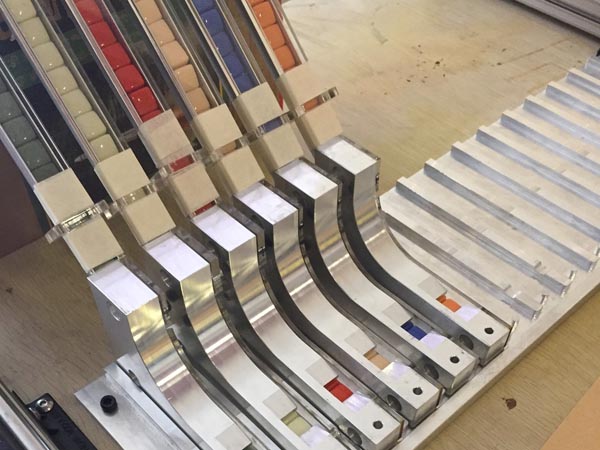

Gravity Slot, Pallets, Vibriation Gravity Slot, Vibriation Disc, Revolver, Pallet Stack, etc.

Another feeding solution
Camera system (computer vision) can be used to hold irregular shape tiles which are not suitble for standard feeders.
In most case it will be combined with panel or belt system.

Robot and Feeding System and Support Componets gathered together to form up a Robotic Mosaic Assembly System.
It is not a ready to sell product. You need to contact us to order your unique system.

Buy Mosaic Robot How to use it

Major Componets

Mosaic Robot

Tile Feeder

The common features and workflow of a robot powered mosaic workshop

If you want establish your own mosaic robot workshop, There are many types of mosaic workshop exist.
They share some common features and use similar workflows.

Common Features
Tile storage. (slots, pallets, packs, storage rack, etc)
Feeding system.
Pick and mount robot.
Receiving system.(pallets, grid, panel, etc)
Finalizing workspace. (flipper, glue, etc)

Typical Workflow
A. Tile preparation. Worker insert tiles to tile feeders, for example Tile Slots.

B. Design a mosaic and generate mosaic data file.

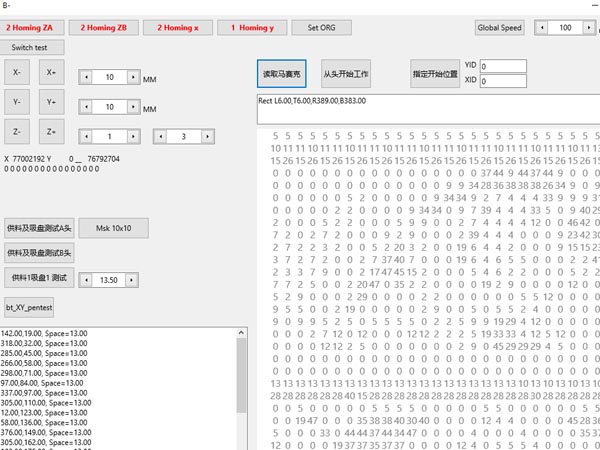

C. Load the mosaic data file to Robot Console.
D. Worker get Tiles Slots from the storage, mount them to the Feeder area of the robot.
E. Worker get Mosaic Pallets from Empty Pallet Storage , and mount them to Pallet area of the robot.
F. Run Mosaic Robot.
G.Once a Mosaic Pallet is filled, you will get a Ready prompt message from a beeper or light.
H.Worker will take the ready Mosaic Pallet to finalizing worktable. and package them.

Buy Mosaic Robot How to use it

Demo video, Types of our mosaic robot.

Cartesian Robot, the most popular model.

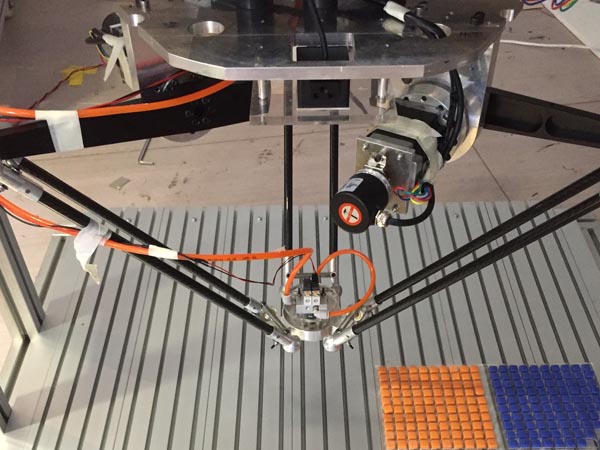

Delta Robot, this type is fast for tiny tiles.

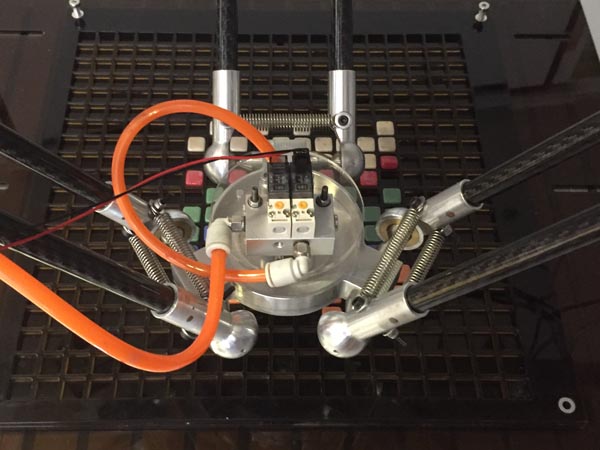

Delta Robot with 4th rotate axis. it is designed for mosaic patterns need to rotate tiles.

Cartesian Robot Delta Robot Rotate Test

Installation of mosaic robot

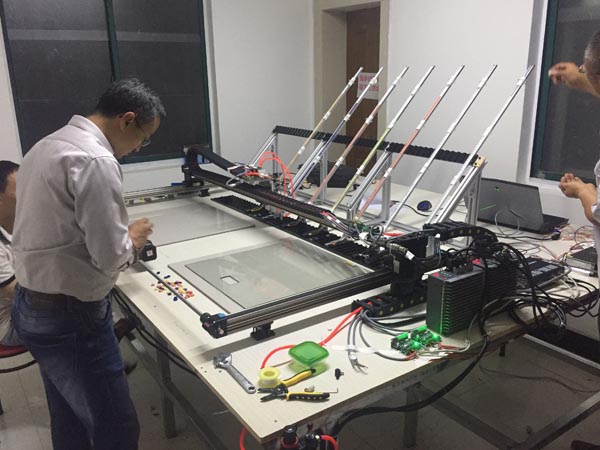

Assemble work in progress

Design tool

Robot Link

Demo Video, Feature Experiments

Speed test 10mm tile Glue jet Combo test, glue and tile.

Picker head

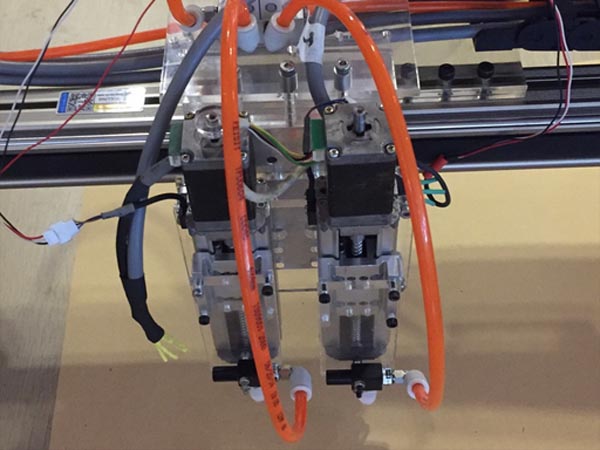

Dual picker head

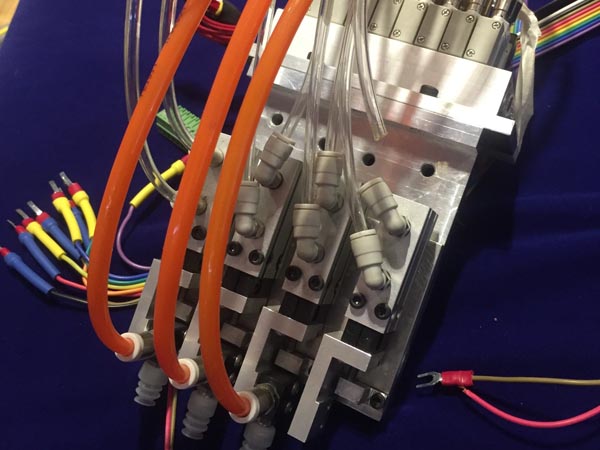

Quad Picker head


Robot Type Comparison

Type Tile Size Feeder Color Count Work Space Speed Advantage Cost
5mm to 15mm Gravity Slot
Vibriation Slot
16 to 32 colors 300x600mm 1200 to 2400 tiles/hour Cheap $4,000 to $8,000
5mm to 40x40mm All 16 to 100 colors 300x600mm to 1000x1000mm 3000 to 6000 tiles/hour Fast,
Grid Pattern
$6,000 to $15,000
*DELTA 5mm to 40x40mm All 16 to 60 colors 400x400mm to 800x800mm 3000 tiles/hour Compact Size
Rotate Pattern
$8,000 to $20,000

*We do not offer Delta Robot at this moment, It need more testing in our lab and workshop.

Feeder Type Comparison

Type Capacity Refilling Jamming Toleration Usage Cost of a 24 colors group
Gravity Slot 50 to 200 tiles Manually or Vibriation Disc Weak Artstudio, Workshop $1,500
Vibriation Slot 100 to 200 tiles Manually or Vibriation Disc Normal Factory $2,400 to $5,000
Vibriation Disc 1000 to 5000 tiles Very easy: pour Strong Factory $12,000 to $20,000

Full solution includes Mosaic Robot, Feeder Group, Accessories, Spare Parts, etc.
Entry level mosaic robot system,
equiped 24 feeder (10mm tiles), speed=1200 tiles/day, cost $8,000 more or less.
Standard system,
48 colors vibriation feeder, 2 size tiles (10mm, 14mm or other size) , speed=4000 tiles/day, cost around $22,000.
Factory system with higher performance will cost more. Contact us to discuss.

Order Now

Video Demo: Module Experiment

Vibration Slot Feeder Vibration Disc Feeder Machine Vision
More Videos will be uploaded soon.
Mini Tile Testing, 3mm, 4mm, 5mm, 6mm.
Custom Glass Cutter,

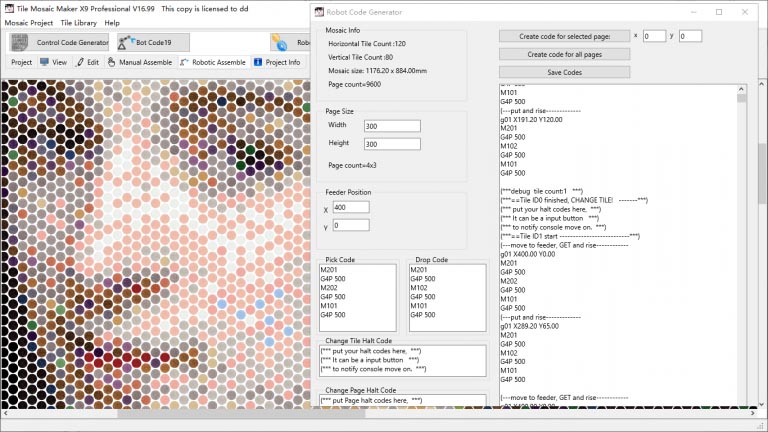

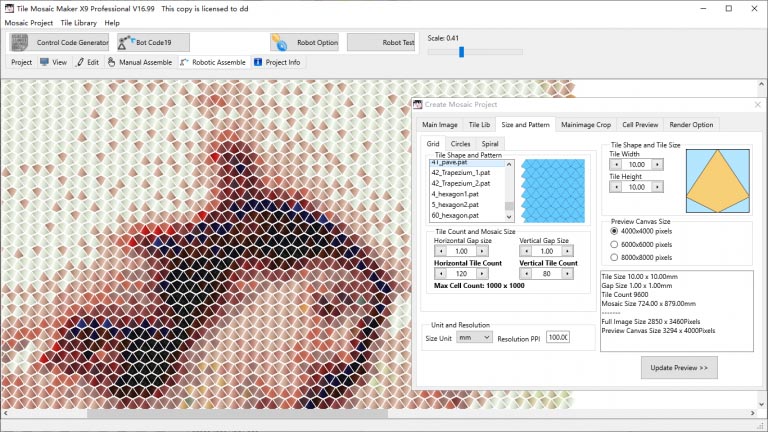

Screenshots of the design software

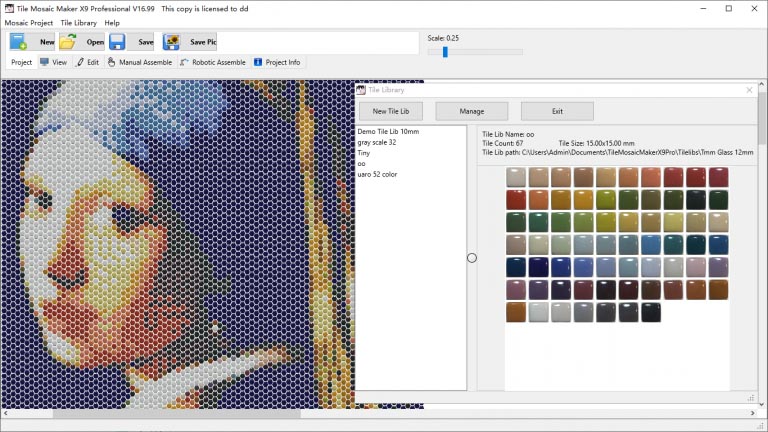

Custom tile lib

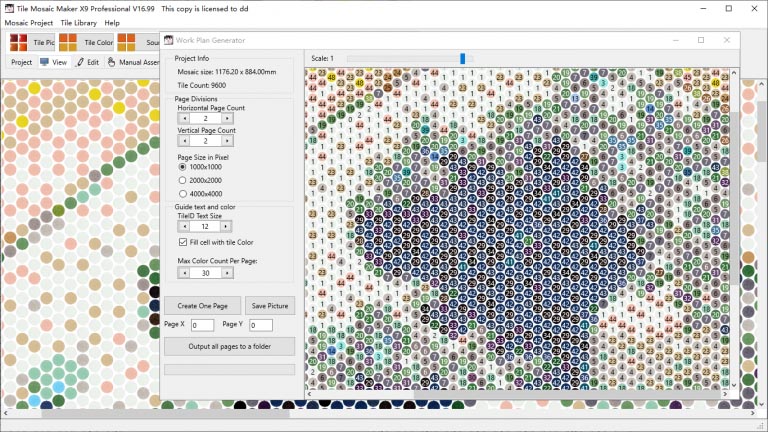

Assembly Workplan
